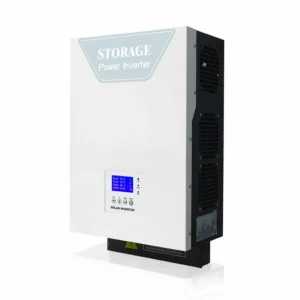

HP PRO-T 12V 24V 48V solar hybrid inverter,1KW-8KW
◤HP PRO-T 12V 24V 48V SOLAR INVERTER FEATURE：
★Pure sine wave high frequency solar inverter, high efficiency and low no-load loss;
The advantages of this type of 12V 24V 48V Solar Inverter are good output waveform, low distortion, and its output waveform is basically consistent with the AC waveform of the power grid, and can even be said to be of higher quality. Low interference to communication and precision equipment, low noise, strong load adaptability, and able to meet all applications of AC loads.
★MPPT solar charge controller and inverter combo, It is the most popular integrated design in the market;
MPPT – Maximum Power Point Tracking Solar Controller. The 12V 24V 48V Solar Hybrid Inverter with built-in controller can ensure that the solar panel always operates at the maximum power point through continuous optimization, fully utilizing the output energy of the solar cell array, and improving power generation efficiency.
★Battery charge and discharge voltage parameters can be set, Suitable for lead-acid battery, lithium ion battery, gel battery and other battery types;
This 12V 24V 48V Solar Hybrid Inverter comes with a charging function, which can be used to charge the battery through solar energy during the day as a backup power source at night, or to charge the battery through mains power. When mains power is not available, the battery can continue to supply power to the electrical appliances. And the battery charging and discharging voltage parameters can be adjusted according to the actual situation, which is compatible with various batteries on the market.
★Support solar energy, mains power and generator input, stabilized voltage output;
The 12V 24V 48V Solar Hybrid Inverter can supply power to the load and simultaneously charge the battery through three methods: solar energy, mains power, and generator. These three methods can be flexibly adjusted according to actual power consumption, ensuring sufficient backup power supply for emergency needs.
★Off grid solar inverter can work without battery optional, saving the cost of solar power system;
This off grid 12V 24V 48V Solar Hybrid Inverter can flexibly configure battery capacity according to customer needs, or even operate without batteries, which can save the cost of battery pack maintenance. As long as the solar energy in your area is abundant enough, you can operate the entire solar system off the grid to cope with harsh electricity environments such as sudden power outages.
★RS485 communication port/APP optional, convenient to remotely monitor the operation status of the solar inverter.
HP PRO-T 12V 24V 48V Hybrid Inverter wiring diagram
◤HP PRO-T 12V 24V 48V SOLAR HYBRID INVERTER OEM/ODM：
XINDUN power,the Most Reliable 12V 24V 48V Solar Hybrid Inverter Manufacturer in China,more than 16 Years of Production and Sales Experience.Suitable for personal use or for agents to select suppliers.Welcome customize order with LOGO design or outlook design.Special voltage,power and appearance can be customized according to the users.Accept OEM/ODM.
Please contact XINDUN our sales for more about 12V 24V 48V Solar Hybrid Inverter price.
▼XINDUN Power HP PRO-T 12V 24V 48V Solar Inverter factory
▼XINDUN Power HP PRO-T Solar Hybrid Inverter Case
◤HP PRO-T 12V 24V 48V HYBRID SOLAR INVERTER SPECIFICATIONS：
| Specification | ||||||||||
| Model: HP pro-T | 10212 | 15224 | 20224 | 32224L | 32224 | 50248L | 50248 | 72248 | ||
| Rated Power | 1000W | 1500W | 2000W | 3200W | 3200W | 5000W | 5000W | 7200W | ||
| Peak Power（20ms) | 3000VA | 4.5KVA | 6KVA | 9.6KVA | 9.6KVA | 15KVA | 15KVA | 21.6KVA | ||
| Battery Voltage | 12VDC | 24VDC | 48VDC | |||||||
| Product Size（L*W*Hmm） | 355x272x91.5 | 400x315x101.5 | 440x342x101.5 | 525x355x115 | ||||||
| Package Size（L*W*Hmm） | 443x350x187 | 488x393x198 | 528x420x198 | 615x435x210 | ||||||
| N.W（Kg） | 6.5 | 8.5 | 10 | 14 | ||||||
| G.W（Kg） | 7.5 | 9.5 | 11 | 15.5 | ||||||
| Installation Method | Wall-Mounted | |||||||||
| ＰＶ | Charging Mode | MPPT | ||||||||
| MPPT tracking voltage range | 15V-80VDC | 30V-100VDC | 120V-450VDC | 60V-140VDC | 120V-450VDC | |||||
| Rated (recommended) operating voltage of PV array | 15V-30VDC | 30V-60VDC | 360VDC | 60V-90VDC | 360VDC | |||||
| Max PV Input Voltage Voc (At the lowest temperature) |
120VDC | 500VDC | 180VDC | 500VDC | ||||||
| PV Array Maximum Power | 840W | 1680W | 4000W | 3360W | 6000W | 4000Wx2 | ||||
| MPPT tracking channels (input channels) | 1 | 2 | ||||||||
| Input | DC Input Voltage Range | 10.5-15VDC | 21VDC-30VDC | 42VDC-60VDC | ||||||
| Rated AC input voltage | 220VAC / 230VAC / 240VAC | |||||||||
| AC Input Voltage Range | 170VAC~280VAC （UPS mode）/ 120VAC~280VAC（INV mode） | |||||||||
| AC Input Frequency Range | 45Hz~55Hz（50Hz)，55Hz~65Hz（60Hz) | |||||||||
| Output | Output efficiency(Battery/PV Mode) | 94%（Peak value） | ||||||||
| Output Voltage(Battery/PV Mode) | 220VAC±2% / 230VAC±2% / 240VAC±2% | |||||||||
| Output Frequency(Battery/PV Mode) | 50Hz±0.5 or 60Hz±0.5 | |||||||||
| Output Wave(Battery/PV Mode) | Pure Sine Wave | |||||||||
| Efficiency(AC Mode) | >99% | |||||||||
| Output Voltage(AC Mode) | Follow input | |||||||||
| Output Frequency(AC Mode) | Follow input | |||||||||
| Output waveform distortion Battery/PV Mode) |
≤3%(Linear load) | |||||||||
| No load loss(Battery Mode) | ≤1% rated power | |||||||||
| No load loss(AC Mode) | ≤0.5% rated power(charger does not work in AC mode) | |||||||||
| Battery | Battery Type |
VRLA Battery | Charge Voltage :13.8V; Float Voltage:13.7V(Single battery voltage) | |||||||
| Customize battery | Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel) |
|||||||||
| Maximum charging current (mains + PV) | 120A | 100A | 110A | 120A | 100A | 120A | 100A | 150A | ||
| Max PV Charging Current | 60A | 60A | 60A | 60A | 100A | 60A | 100A | 150A | ||
| Max AC Charging Current | 60A | 40A | 50A | 60A | 60A | 60A | 60A | 80A | ||
| Charging method | Three-stage (constant current, constant voltage, floating charge) | |||||||||
| Protection | Battery low voltage alarm | Battery undervoltage protection value+0.5V(Single battery voltage) | ||||||||
| Battery low voltage protection | Factory default: 10.5V(Single battery voltage) | |||||||||
| Battery over voltage alarm | Constant charge voltage+0.8V(Single battery voltage) | |||||||||
| Battery over voltage protection | Factory default: 17V(Single battery voltage) | |||||||||
| Battery over voltage recovery voltage | Battery overvoltage protection value-1V(Single battery voltage) | |||||||||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | |||||||||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | |||||||||
| Temperature protection | >90°C(Shut down output) | |||||||||
| Working Mode | Mains priority/PV priority/Battery priority(Can be set) | |||||||||
| Transfer Time | ≤10ms | |||||||||
| Display | LCD+LED | |||||||||
| Thermal method | Cooling fan in intelligent control | |||||||||
| Communication(Optional) | RS485/APP(WIFI monitoring or GPRS monitoring) | |||||||||
| Environment | Operating temperature | -10℃~40℃ | ||||||||
| Storage temperature | -15℃~60℃ | |||||||||
| Noise | ≤55dB | |||||||||
| Elevation | 2000m(More than derating) | |||||||||
| Humidity | 0%~95% (No condensation) | |||||||||
| Note: 1. Model of 10212/15224/20224/32224L/50248L only support mains priority mode and battery priority mode, PV priority work mode is not supported. 2. All specifications are subject to charge without prior notice. |
||||||||||
XINDUN Power – China 12V 24V 48V Solar Hybrid Inverter manufacturer and supplier. We only provide high-quality Solar Hybrid Inverter to global customers, including importers, wholesalers, agents, retailers and individual users.If you want to find 12V 24V 48V Solar Hybrid Inverter suitable for your market and the appropriate inverter price, please feel free to contact our inverter sales experts, and we will help you succeed in the Inverter market.
